第二部分 常见操作
获取, 查看和修改git版本库
Created by Charles Liu
Agenda
- 获取版本库
- 审查版本库
- 创建版本库
- 提交一个修改
- 多分支
- 复用commit
- 冲突解决
获取一个repository
git clone
试着获取emoji-minesweeper框架代码
https://github.com/dodoinblue/emoji-minesweeper
# 需要联网
$ git clone https://github.com/dodoinblue/emoji-minesweeper.git
进入工作目录
$ cd emoji-minesweeper
$ ls
README.md game.js index.html
查看repo的历史记录
git log
$ git log
commit d2ddef48a916da9dd78526d004bcad5e9fa44ad5
Author: Mu-An Chiou <muan@github.com>
Date: Mon Feb 8 01:48:05 2016 +0800
:grimacing:
commit e4c78a2cd35d9fb92e69f0f80b426f64cd327504
Author: Mu-An Chiou <muan@github.com>
Date: Sun Feb 7 16:46:24 2016 +0800
☔
commit a3dcc600deee31309acaf2676ab6bfe5d7322e6d
Author: Mu-An Chiou <muan@github.com>
Date: Sun Feb 7 16:42:11 2016 +0800
Add a set
commit 1ba3c811150d23380140fe497140681e196c4ea9
Author: Mu-An Chiou <muan@github.com>
Date: Sun Feb 7 16:10:02 2016 +0800
Up native emoji font-size
commit 2b8f14aa2d74c1d287634da52808acf08b1fece6
Merge: 2707be9 03f873b
Author: Mu-An Chiou <muan@github.com>
Date: Tue Dec 1 21:50:57 2015 +0900
Merge pull request #16 from francisfuzz/patch-1
:
log内容:
Commit Id - 作者 - 时间 - 描述定制log的输出内容和格式
$ git log --oneline # 每个commit用一行显示
d2ddef4 :grimacing:
e4c78a2 ☔
a3dcc60 Add a set
1ba3c81 Up native emoji font-size
2b8f14a Merge pull request #16 from francisfuzz/patch-1
03f873b (docs) correct typo
2707be9 Add link to GitHub
b76a7d6 @jsstrn did this! :tada:
d983f5f Merge pull request #15 from jsstrn/gh-pages
14c88f7 Add selection for different emoji sets
b272295 Merge pull request #12 from eush77/restart-key
6fba66c Merge pull request #11 from eush77/firefox-textcontent-fix
4a06015 Add shortcut for restarting the game
019a03f Replace innerText with textContent
9e0b44f Merge pull request #10 from nkantar/gh-pages
738b6ed Oops, moar double quotes
6182c68 Oops, double quotes
1eee74a Adds max='500' to input fields
bbeb0ee Adds min='1' to input fields
ebdf69d Rearrange readme sections
8efa43f :straight_ruler: Align
cff9c55 :infomation_desk_person: in case you've not played minesweeper before
d9537b4 :beetle: fix sometimes getting one extra bomb
caa970b :x: remove borders
327c0b2 :heart_eyes: update gif
fd2ed50 :flower: style divider
3a729b5 :nail_care: hide all settings in a popup so much cleaner but much css
c2e5791 Merge pull request #7 from javierbyte/gh-pages
61a79d4 Stop stats' shake.
c7cf40f :iphone: see
b780bb2 :white_check_mark: these are done thanks to @notwaldorf wow
$ git log -n 1 # 显示最近的一个commit信息
commit d2ddef48a916da9dd78526d004bcad5e9fa44ad5
Author: Mu-An Chiou <muan@github.com>
Date: Mon Feb 8 01:48:05 2016 +0800
:grimacing:
也可以结合多个命令一起使用
$ git log --oneline -n 5 # 显示最近的5个commit的简要信息
d2ddef4 :grimacing:
e4c78a2 ☔
a3dcc60 Add a set
1ba3c81 Up native emoji font-size
2b8f14a Merge pull request #16 from francisfuzz/patch-1
$ git log --color --graph --pretty=format:'%Cred%h%Creset -%C(yellow)%d%Creset %s %Cgreen(%cr) %C(bold blue)<%an>%Creset' --abbrev-commit
* d2ddef4 - (HEAD -> gh-pages, origin/gh-pages, origin/HEAD) :grimacing: (5 months ago) <Mu-An Chiou>
* e4c78a2 - ☔ (5 months ago) <Mu-An Chiou>
* a3dcc60 - Add a set (5 months ago) <Mu-An Chiou>
* 1ba3c81 - Up native emoji font-size (5 months ago) <Mu-An Chiou>
* 2b8f14a - Merge pull request #16 from francisfuzz/patch-1 (7 months ago) <Mu-An Chiou>
|\
| * 03f873b - (docs) correct typo (7 months ago) <Francis>
|/
* 2707be9 - Add link to GitHub (8 months ago) <Mu-An Chiou>
* b76a7d6 - @jsstrn did this! :tada: (8 months ago) <Mu-An Chiou>
* d983f5f - Merge pull request #15 from jsstrn/gh-pages (8 months ago) <Mu-An Chiou>
|\
| * 14c88f7 - Add selection for different emoji sets (8 months ago) <jsstrn>
|/
* b272295 - Merge pull request #12 from eush77/restart-key (8 months ago) <Mu-An Chiou>
用图形化工具gitk查看
$ gitk
git log练习
查找题为"Rearrange readme sections"的commit
git命令别名
可以通过配置别名来简化命令输入
$ git config --global alias.st status
$ git config --global alias.lg "log --color --graph --pretty=format:'%Cred%h%Creset -%C(yellow)%d%Creset %s %Cgreen(%cr) %C(bold blue)<%an>%Creset' --abbrev-commit"
查看某一commit的具体内容
git show commit-id
$ git show a3dcc60
commit a3dcc600deee31309acaf2676ab6bfe5d7322e6d
Author: Mu-An Chiou <muan@github.com>
Date: Sun Feb 7 16:42:11 2016 +0800
Add a set
diff --git a/index.html b/index.html
index 1e1a141..345fef0 100644
--- a/index.html
+++ b/index.html
@@ -284,7 +284,8 @@
<option value="<U+1F423> <U+1F4A3> <U+1F6A7> ◻️"><U+1F423> <U+1F4A3> <U+1F6A7></option>
<option value="<U+1F370> <U+1F47E> <U+1F4CC> ◻️"><U+1F370> <U+1F47E> <U+1F4CC></option>
<option value="<U+1F337> ⚡️ <U+1F41E> ◻️"><U+1F337> ⚡️ <U+1F41E></option>
- <option value="<U+2B55>️ <U+274C> <U+2757>️ ◻️"><U+2B55>️ <U+274C> <U+2757>️</option>
+ <option value="<U+2B55>️ <U+274C> <U+2757>️ ✖️️"><U+2B55>️ <U+274C> <U+2757>️ ✖️</option>
+ <option value="☀ ⚡ ☂ ☁️"> ☀ ⚡ ☂ ☁️</option>
</select>
<button class="js-popup-new-game btn">Restart Game</button>
</div>
git show练习
Commit "(docs) correct typo" 修改了哪个typo? 对哪个文件做的修改?
比较版本变化
git diff commit1 commit2
比较"Up native emoji font-size" 和 "Add a set"这两个版本之间的区别
$ git diff 1ba3c..a3dcc60
diff --git a/index.html b/index.html
index 1e1a141..345fef0 100644
--- a/index.html
+++ b/index.html
@@ -284,7 +284,8 @@
<option value="<U+1F423> <U+1F4A3> <U+1F6A7> ◻️"><U+1F423> <U+1F4A3> <U+1F6A7></option>
<option value="<U+1F370> <U+1F47E> <U+1F4CC> ◻️"><U+1F370> <U+1F47E> <U+1F4CC></option>
<option value="<U+1F337> ⚡️ <U+1F41E> ◻️"><U+1F337> ⚡️ <U+1F41E></option>
- <option value="<U+2B55>️ <U+274C> <U+2757>️ ◻️"><U+2B55>️ <U+274C> <U+2757>️</option>
+ <option value="<U+2B55>️ <U+274C> <U+2757>️ ✖️️"><U+2B55>️ <U+274C> <U+2757>️ ✖️</option>
+ <option value="☀ ⚡ ☂ ☁️"> ☀ ⚡ ☂ ☁️</option>
</select>
<button class="js-popup-new-game btn">Restart Game</button>
</div>
跨越多个commit的比较变化
显示b76a到03f87的变化
$ git diff b76a..03f87
diff --git a/README.md b/README.md
index 409d5a5..49761fc 100644
--- a/README.md
+++ b/README.md
@@ -4,7 +4,7 @@
- Left click to step on a spot
- Right click to mark a spot as a bomb
-- Double clcik to open all 8 spots nearby a target (except ones already marked as bombs using right clicks)
+- Double click to open all 8 spots nearby a target (except ones already marked as bombs using right clicks)
**This is a work in progress**
diff --git a/index.html b/index.html
index ef87916..19b9f62 100644
--- a/index.html
+++ b/index.html
@@ -189,7 +189,6 @@
padding: 8px 10px 5px;
display: table-cell;
text-align: center;
- font-family: "Exo 2", sans-serif;
}
.stat:after {
@@ -250,6 +249,19 @@
color: #999;
font-size: 0.65em;
}
+
+ .stat,
+ .link-to-github {
+ font-family: "Exo 2", sans-serif;
+ }
+
+ .link-to-github {
+ margin: 40px auto;
+ display: block;
+ font-size: 12px;
+ color: #08c;
+ text-decoration: none;
+ }
</style>
</head>
<body>
@@ -287,7 +299,7 @@
<div title="TIME" id="timer" class="stat flex-cell">0</div>
</div>
</div>
- <br>
+ <a href="https://github.com/muan/emoji-minesweeper" class="link-to-github">[Code]</a>
<script>
var emojiset = document.getElementById('emojiset').value.split(' ')
git diff练习
从commit "Up native emoji font-size" 到最新的版本之间, 一共修改了几个文件, 几行增加, 几行删减?
查看当前状态
git status
$ git status
On branch master
Your branch is up-to-date with 'origin/master'.
nothing to commit, working tree clean
切换到特定版本
git checkout commitId
看看在"Add a set"这个提交之前, emoji-sweeper游戏的运行效果是什么样的?
$ git checkout a3dcc60
# Now run index.html and find the difference.
切换回master
$ git checkout master
创建版本库
git init
创建一个目录, 查看版本历史和目录结构
repository $ mkdir todo-list
repository $ cd todo-list
todo-list $ git log
fatal: Not a git repository (or any of the parent directories): .git
$ ls
$ ls -a #查看隐藏文件
. ..
创建新版本库
$ git init
Initialized empty Git repository in /Users/Charles/repository/todo-list/.git/
$ ls -a
. .. .git
新版本库的状态
git status
$ git status
On branch master
Initial commit
nothing to commit (create/copy files and use "git add" to track)
暂存文件改动
git add filename
首先要对文件做一些修改
$ echo "# Todo List" >> Readme.md
$ git status
On branch master
Initial commit
Untracked files:
(use "git add <file>..." to include in what will be committed)
Readme.md
nothing added to commit but untracked files present (use "git add" to track)
跟踪新文件--执行git add
$ git add Readme.md
$ git status
On branch master
Initial commit
Changes to be committed:
(use "git rm --cached <file>..." to unstage)
new file: Readme.md
缓存已跟踪文件
对已跟踪文件再次做出修改
$ echo "another change" >> Readme.md
$ git status
On branch master
Your branch is up-to-date with 'origin/master'.
Changes to be committed:
(use "git reset HEAD <file>..." to unstage)
modified: Readme.md
Changes not staged for commit:
(use "git add <file>..." to update what will be committed)
(use "git checkout -- <file>..." to discard changes in working directory)
modified: Readme.md
在缓存前, 确认改动内容
git diff
$ git diff
diff --git a/Readme.md b/Readme.md
index 9da002c..1aad9fa 100644
--- a/Readme.md
+++ b/Readme.md
@@ -4,3 +4,4 @@ buy soy-milk
buy kiwifruit
buy apple
something
+another change
再次执行git add
$ git add Readme.md
$ git status
On branch master
Your branch is up-to-date with 'origin/master'.
Changes to be committed:
(use "git reset HEAD <file>..." to unstage)
modified: Readme.md
未跟踪, 未修改, 已修改, 已缓存之间的转换
sequenceDiagram
participant Untracked as 未跟踪
participant Unmodified as 未修改
participant Modified as 已修改
participant Staged as 已缓存
Untracked ->> Staged: git add
Unmodified ->> Modified: 编辑/修改代码
Modified ->> Staged: git add
Unmodified ->> Untracked: git rm
Staged ->> Unmodified: git commit
git add 思考
git log会看到commit记录么?
提交改动
git commit
提交前审查文件变化
$ git diff --cached
diff --git a/Readme.md b/Readme.md
index c76d50f..9da002c 100644
--- a/Readme.md
+++ b/Readme.md
@@ -3,3 +3,4 @@
buy soy-milk
buy kiwifruit
buy apple
+something
执行git commit
$ git commit
# 界面跳转到vim或指定编辑器编辑"提交说明". VIM界面如下:
# Please enter the commit message for your changes. Lines starting
# with '#' will be ignored, and an empty message aborts the commit.
# On branch master
# Changes to be committed:
# new file: Readme.md
#
~
~
~
".git/COMMIT_EDITMSG" 9L, 283C
可以通过*-m*参数直接写入提交说明
$ git commit -m "a change to demo git usage"

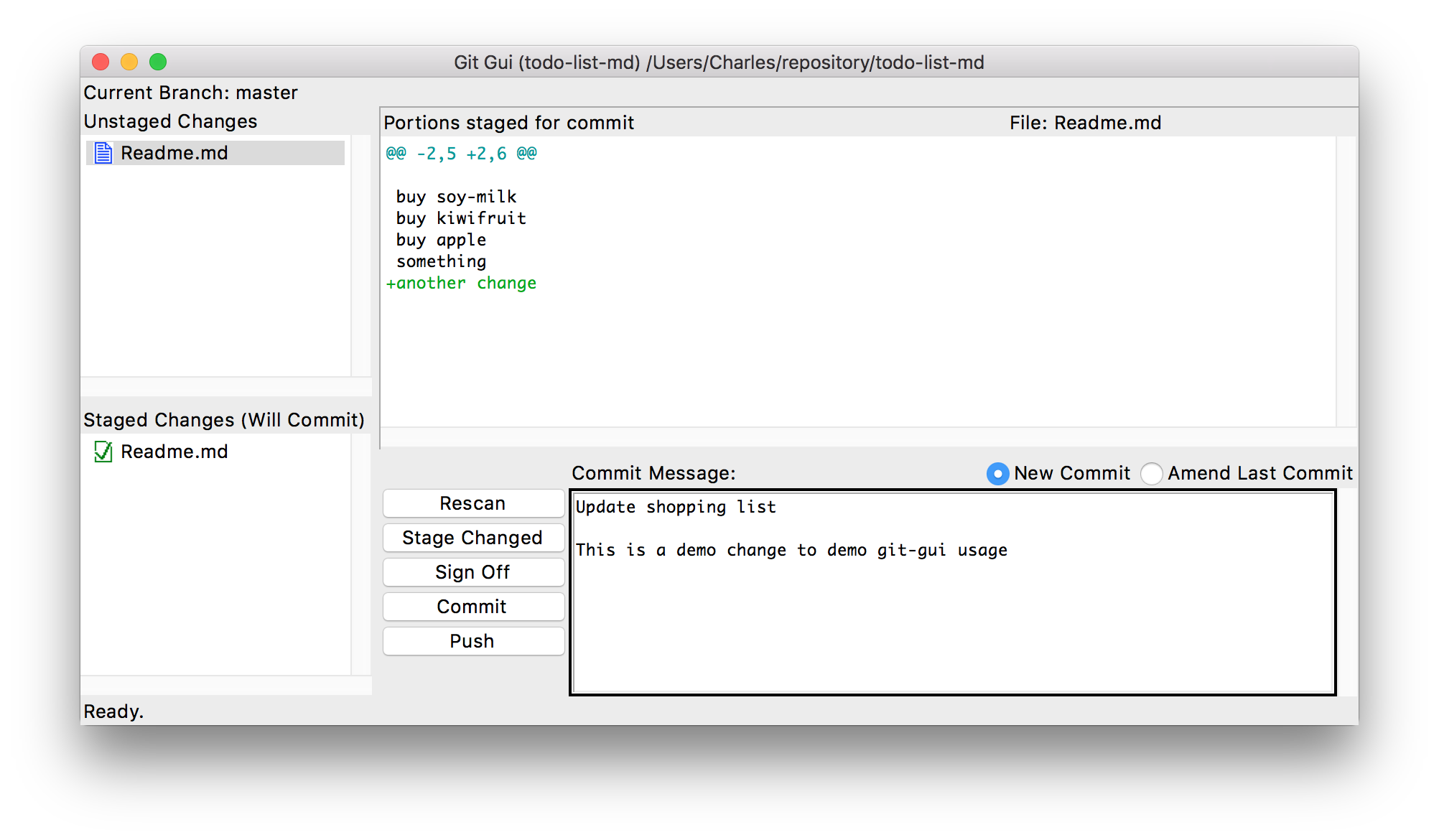

通过git-gui缓存和提交
commit message的书写要求
修改的摘要（50 个字符或更少）
如果必要的话，加入更详细的解释文字。在
大概 72 个字符的时候换行。在某些情形下，
第一行被当作一封电子邮件的标题，剩下的
文本作为正文。分隔摘要与正文的空行是
必须的（除非你完全省略正文）；如果你将
两者混在一起，那么类似变基等工具无法
正常工作。
空行接着更进一步的段落。
- 句号也是可以的。
- 项目符号可以使用典型的连字符或星号
前面一个空格，之间用空行隔开，
但是可以依据不同的惯例有所不同。
如果你使用缺陷跟踪系统, 在正文最下方引用它们的id
Resolves: #123
See also: #456, #789
- 标题简要描述所修改的问题
- 一定要空行. 空行是git区别标题和正文的方式
- 正文每行不超过72字符.
- 正文可以详细描述一下问题的现象, 原因及解决思路. 有要求的话可以引用BugId, TaskId或者FeatureId, 方便项目跟踪.
git commit思考题
git log会看到什么?
git status会看到什么?
工作区, 管存区和版本库
sequenceDiagram
participant Working as 工作区
participant Staging as 缓存区
participant Repo as 版本库
Repo ->> Working: git checkout
Working ->> Staging: git add
Staging ->> Repo: git commit
- 对文件系统的改动, 首先会被记录在工作区, 作为Unstaged Chanages或者Untracked Files
- 一个Commit, 对于git来说是一个存储记录.
- 缓存区是在工作区和Commit记录之间的缓冲. 可以有选择的将一部分文件系统改动添加进缓存区, 让Commit更灵活
- Commit时可以写描述, 方便区分和回忆改动的内容和目的
修改最近一次提交
git commit --amend
$ echo "some amends" >> Readme.md
$ git add Readme.md
$ git commit --amend
# 编辑Commit消息然后保存退出
$ git log --oneline
忽略特定文件
.gitignore文件
在工作区, 可以建立也个特殊的文件叫.gitignore, 这个文件里面保存一个不需要git跟踪的文件列表. 这样的文件包括, Visual Studio生成的项目配置文件, 比如c编译出来的obj文件, Windows图片文件夹的缩略图缓存文件Thumbs.db等.
- 所有空行或者以 ＃ 开头的行都会被 Git 忽略。
- 可以使用标准的 glob 模式匹配。
- 匹配模式可以以（/）开头防止递归。
- 匹配模式可以以（/）结尾指定目录。
- 要忽略指定模式以外的文件或目录，可以在模式前加上惊叹号（!）取反。
gitignore文件样例
# Object files
*.o
*.ko
*.obj
*.elf
# matlab
# Simulink Code Generation
slprj/
# no .a files
*.a
# but do track lib.a, even though you're ignoring .a files above
!lib.a
# only ignore the TODO file in the current directory, not subdir/TODO
/TODO
# ignore all files in the build/ directory
build/
# ignore doc/notes.txt, but not doc/server/arch.txt
doc/*.txt
# ignore all .pdf files in the doc/ directory
doc/**/*.pdf
https://github.com/github/gitignore 项目维护了常见开发环境的gitignore模板
